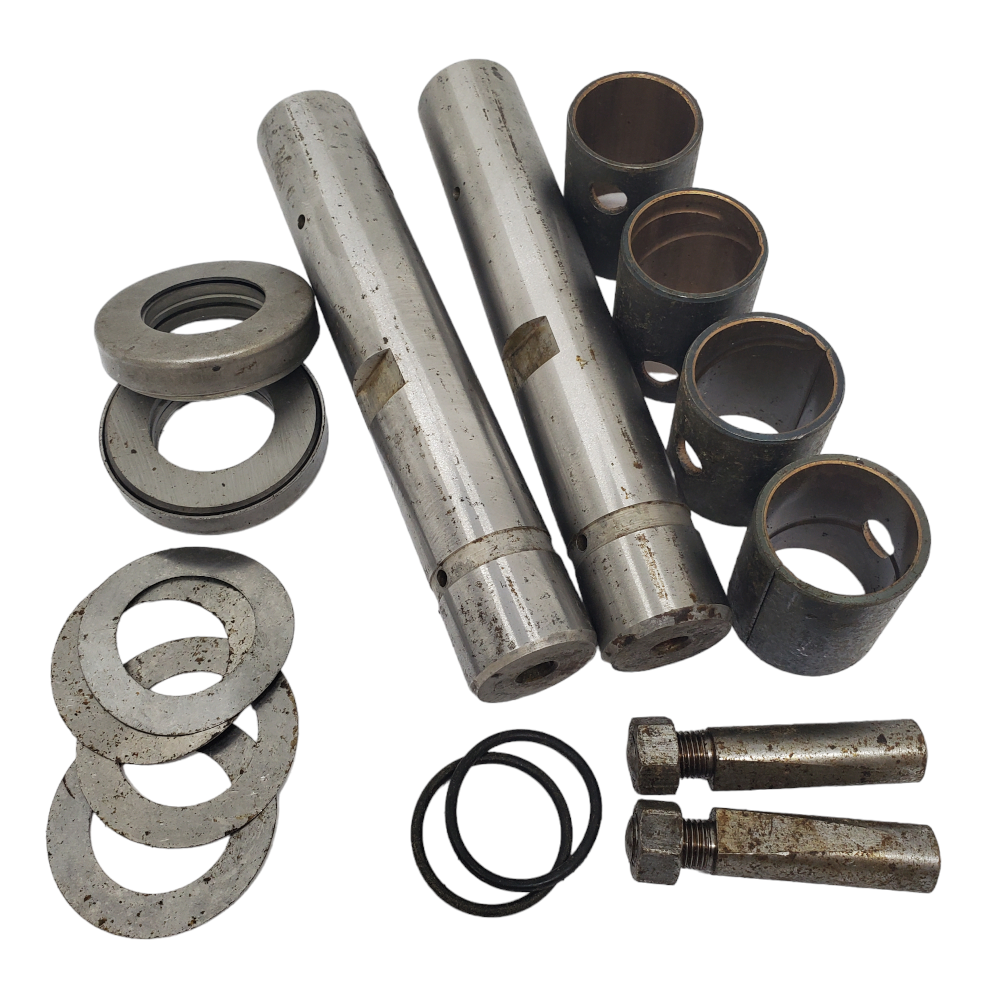

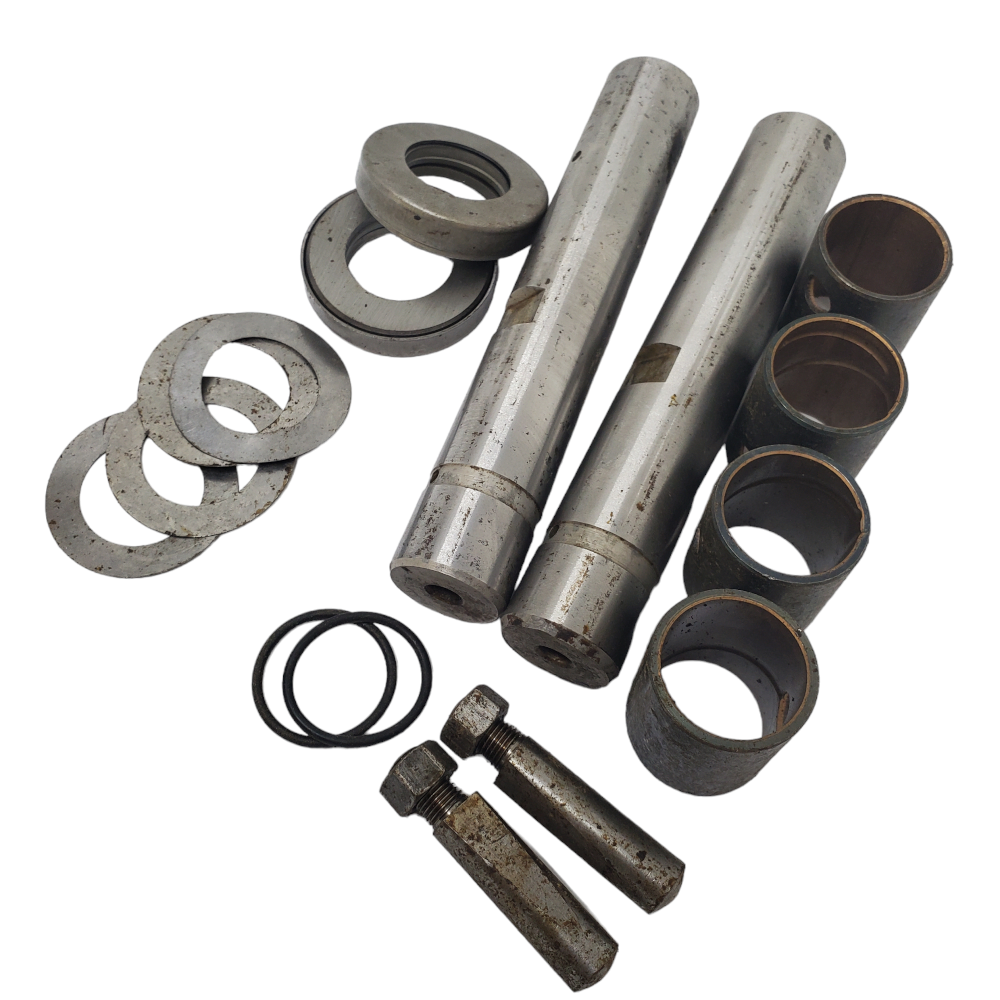

New Old Stock- Never Fitted, English made, Front End King Pin set for Both Sides- Suits 3 to 6 ton Austin, BMC and Morris Commercial Trucks 1949 to 1972. Does not fit every type so please check below for Detailed Fitment-
This Kit will put an end to floppy wheels. This NOS kit has a little shop soiling and marks and are Warranted fit for the job described. These are quite possibly the last batch left around.
These are not Pre Reamed sets so I recommend running an adjustable ream after install.
Size of pins = 1.123" x 6.5"
Size of Bushes = 1.12"I.D. x 1.32"O.D. x 1.5" Long x 2 off & 1.6" x 2 off
KIT FITS FOLLOWING-
AUSTIN/ LEYLAND REDLINE Badged Trucks
1945-55 K3, K4, Loadstar, 3, 4 & 5 Ton Trucks with 6 cylinder. **Not 2 Tons or 30Cwt**
1959 to June 72. Series IV Forward Control Trucks, Prime Mover FG, FGK60, 550FG, FGK80, 700FG 3 & 4 Tons. **NOT From July 72
1956-61. Forward Control, Series III, IV, 4-6OF, 5-60F, (To Chassis No. C93270) 4-5 Ton, 6 cyl.
1956-61 Normal Control Series III , 3 & 5 Ton, 6 Cylinder.
1956-On. Forward Control, Series III, & IV 3 ton, 2-45F, 3-45F, 2 1/2 - 3 Ton, 6 Cylinder.
1961-72. Normal Control, Series 303, 403, 503, 3-38N, 4-50N, 4-80N, 5-50N, 5-80N, 6-50N, 6-80N.
--BMC.-- **Badged Jan.1968 to August 1970**
1968-70. Series IV Forward Control Trucks, Prime Mover FG, FGK60, 550FG, FGK80, 700FG 3 & 4 Tons.
1968-70. Normal Control, Series 303, 403, 503, 3-38N, 4-50N, 4-80N, 5-50N, 5-80N, 6-50N, 6-80N.
MORRIS COMMERCIAL.
1955-68 Normal Control, Series WE, WEK60, WEK80, WEK100, 303, 403, 503, WFK60, WFK80, WFK100.
1959-68. Forward Control, Series III, & IV 3 ton, 2-45F, 3-45F, 2 1/2 - 3 Ton, 6 Cylinder
IF ANY DOUBT CALL 0265745371 Or check the Pin Size against that listed above.
