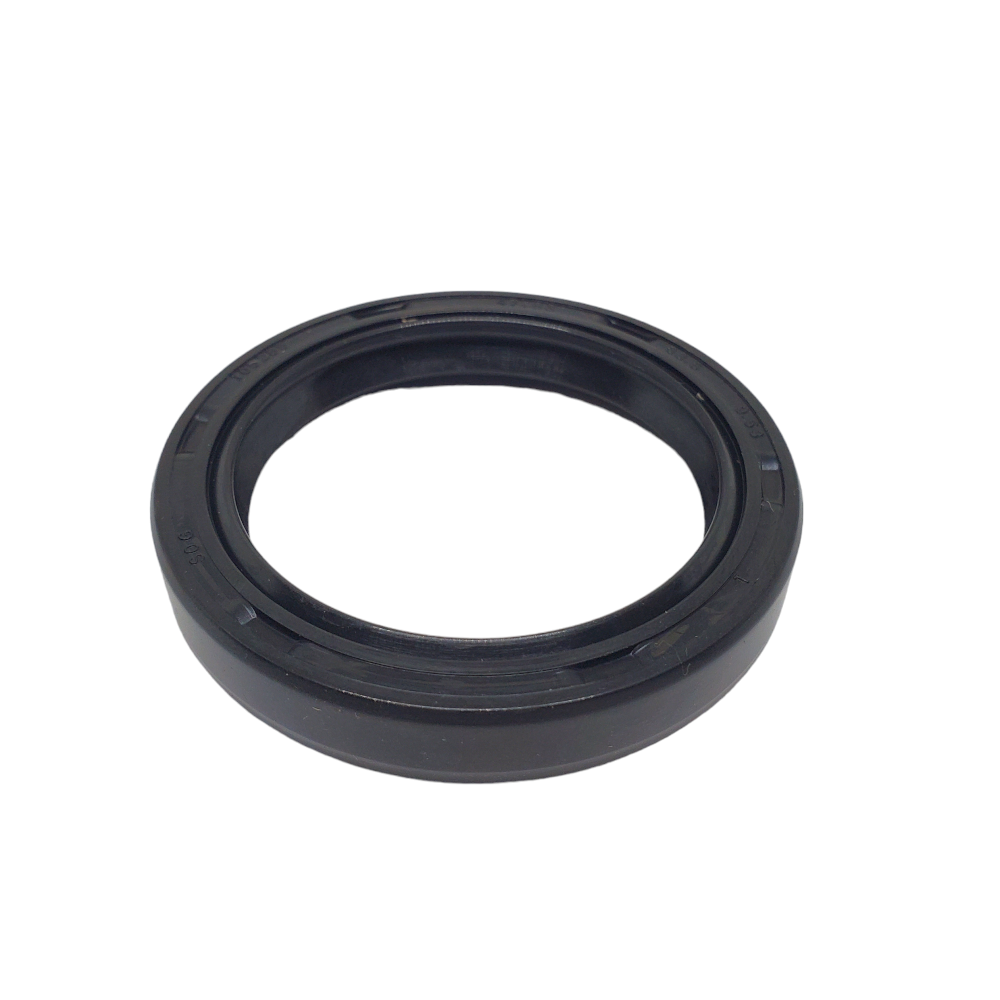

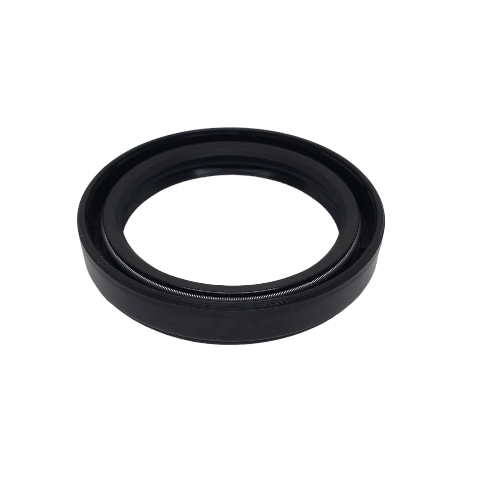

This seal is a common seal used on the 6 cylinder 2 to 7 ton models In Austins from 1939 on and Morris Commercials 1955 onwards. Used primarily as a rear Gearbox Seal and as a differential Pinion Oil Seal. on many models listed below
This Oil Seal Fits the following Models-
AUSTIN TRUCKS.
**All differentials listed here are the Cast Iron ones not the pressed housing types**
1939-1949 All K30, K2, K4 Models, 1.5, 2 and 4 tons Gearbox Rear Oil Seal & Differential Pinion Oil Seal
1949-1954 K2,K3, K4 Models, 2, 3, & 5 tons. Gearbox Rear Oil Seal & Differential Pinion Oil Seal. (**NOT TWO SPEED DIFFERENTIAL**)
1952-1955 All K9 War Department 4 WD General Purpose. Front Axle Pinion Oil Seal , gearbox Rear & Rear Pinion Oil Seal.
1955-1974 WE Series 3 and WF series 4 (Short Door twin Headlights) 2 to 7 tons, Gearbox Rear Oil Seal & Differential Pinion Oil Seal. (**NOT TWO SPEED DIFFERENTIAL**)
1955- on 701, 702, Gearbox Oil Seal Rear with 4 Speed. Does not fit Differential.
1955-60 303, 304, FG-K60, FG-K60, 3 tons & 403 Normal Control, 404 Forward Control 4 tons. Gearbox Rear Oil Seal (4 Speed box only) & Differential Oil Seal. (**NOT TWO SPEED DIFFERENTIAL**)
1962-on WF Series (Twin Headlight Normal Control) Gearbox Rear Oil seal (4 Speed Box) and Rear Pinion Oil Seal (Single speed Differential) (**NOT TWO SPEED DIFFERENTIAL**)
60-on FFK, FH & FJ K60 TO K140. Gearbox Rear Oil Seal (4 Speed Only) (Diff Pinion Oil Seal suit Cast single speed).
MORRIS COMMERCIAL.
1955-on. All 3, 5, 6, 7 ton Models Forward Control and Forward Control Models WE & WF, FG, FE, FF, FH & FJ. Gearbox Rear (4 Speed Only) & Differential Pinion when fitted with Single Speed and Cast Iron Diff Housing only.
